10% Spoilage Loss Reduction.
Spoilage is a constant concern for any business involved in cold chain logistics. That is why it is important to have a reliable cargo temperature and humidity monitoring system. Our system can go far beyond basic temperature and humidity monitoring if needed. Learn more about our cold chain solutions below or contact us for more info.
With Btracking you can efficiently manage the entire chain of storage, shipping, and distribution of climate sensitive products such as fresh food and pharmaceuticals.
Our IoT cold chain refrigeration monitoring system employs wireless sensors to measure, record and report temperature, humidity and location ensuring consistency throughout the supply chain. Real-time alerts instantly warn drivers and Fleet Managers if conditions deviate beyond acceptable limits.

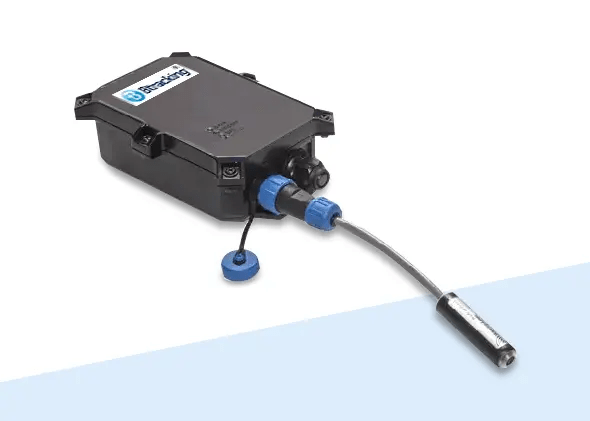

Portable Sensor with GPS Tracking Provides up to 5,000 GPS & temperature readings on one charge. We offer temperature only, and temperature/humidity combo sensors.
Fast Recharging Fast charge from an external standard 12VDC wall charger via a waterproof connector.
Supports 6 Wired Sensors Supports up to 6 wired digital temperature sensors. 2 of these can be temp/humidity combo sensors.
Optional Light Sensor
Easy to Mount with screws, magnets or 2 sided 3M tape.
Monthly Subscription from $17.95
Network GSM/GPRS or EDGE/HSPA+ (3G) or 4G CATM NB1
2G Quad-Band, 3G European: 900/1800/2100 or 3G US 850/1900 MHZ or 4G NB1: Cat.M1 & NB1, LTE-FDD:B1/B2/B3/B4/B5/B8/B12/ B13/B18/B19/B20/B26/B28 LTE-TDD
GPS MTK GPS Technologies – 66 channels
Size 4.9” x 3.3” x 1.6” (125mm x 87mm x 41mm)
Weight 3.7oz (105g) without the batteries
Storage Temperature -40º to 221º F (-40º to 105º C)
Humidity 0 to 99% 110F (40C), non-condensing
Shock/Vibration/Mechanical meets or exceeds EIA standard RS-316B 3G (operating), 20G (non \operating) XYZ 3 directions.
Meets SAE J1455
Rechargeable Battery one 4.2 VDC Lithium rechargeable 7800mAh battery pack. When fully charged has the capacity of transmitting up to 5000 GPS positions. Batteries charged via a standard 6-24VDC regulated power supply wall powered (110-220 AC). Charge time approx 4-5 hours.
Externally powered Will run in continuous mode acting as a real-time tracker under external power.
Current Consumption from Battery
• Standby mode: 40ma at 3V
• Sleep mode: 45uA at 3V
• Transmit mode 1.8A pulse at 3V
Options
Up to 6 external digital temperature sensors (2 of which can be dual temp/humidity sensors) may be connected to monitor 6 different zones. The external temperature sensor might be attached 2 different ways based on specific customer requirements:
• Via direct wire by default 30 cm ( 1 feet) up to 10 meters ( 33 feet )
• Via plug and play connector for quick and easy sensor replacement
Installation Magnet mount, 2-sided 3M tape, or screw mount
