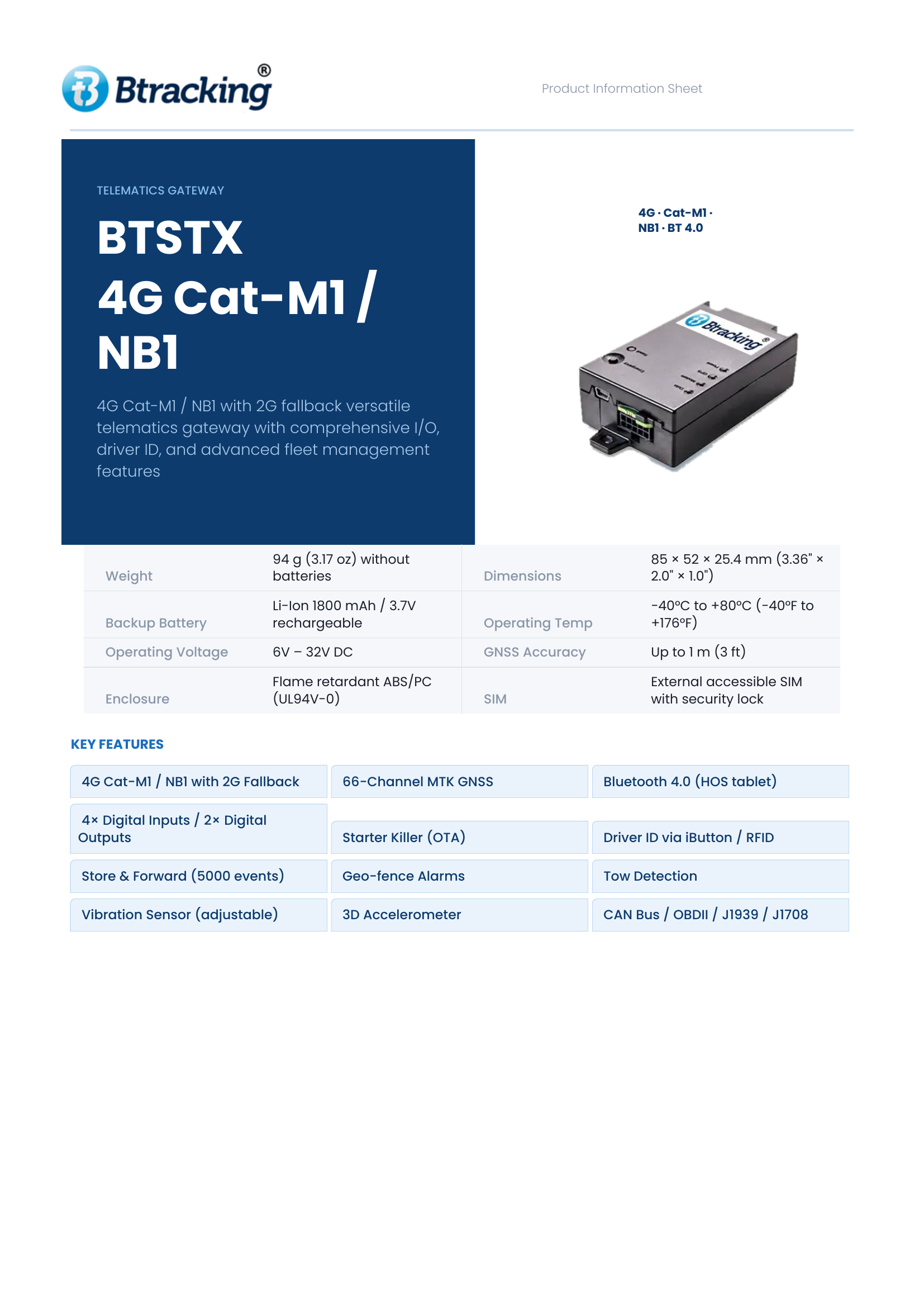

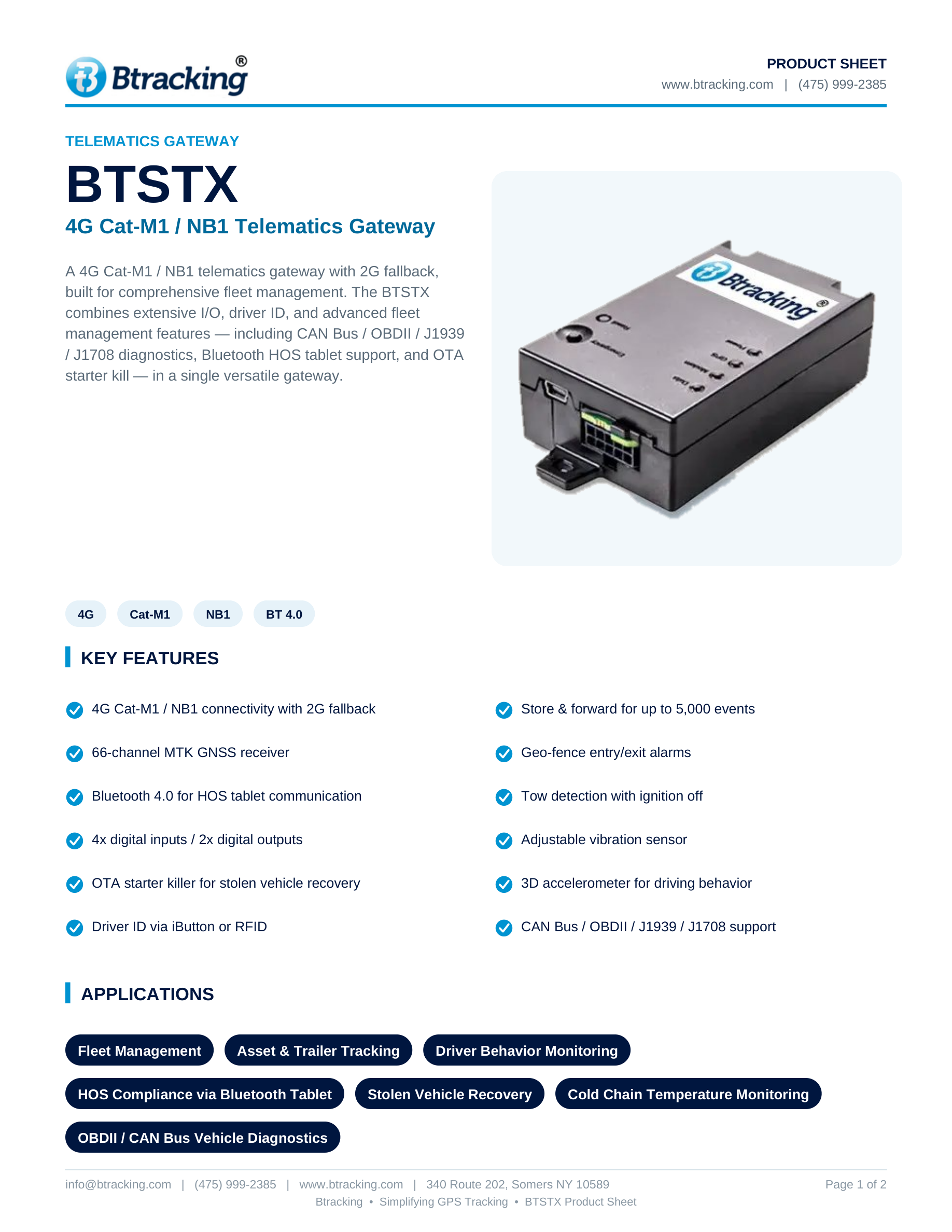

BTSTX

Telematics Gateway Tracker

Btracking truck telematics

Features & Benefits

  • Real Time Location of every vehicle
  • Driver Behavior
  • Events Such As engine on/off, vibration alarm, tow detection, door open/close, impact detection are sent with a time stamp and GPS location
  • I/O 4 digital inputs, 2 analog inputs, 1 digital output, 2 analog outputs. Can be expanded.
  • Automatic Driver ID with RFID card or iButton
  • Buffers 5000 messages
  • Starter Kill command can be sent

Highlights

Telematics Gateways provide GPS tracking along with a host of additional features such as wifi and BLE for integrated dashcams, sensors for monitoring the vehicle, sensors for monitoring the climate in the cargo hold, driver communication with dispatch, HOS electronic logging, and more.

Sends GPS Location every 1 minute when moving, every 6 hours when stopped (customizable)

Accelerometer for Driver Behavior (sudden acceleration, sudden lane crossing, sharp turns, and sudden braking) and movement monitoring

Events Such As engine on/off, vibration alarm, tow detection, door open/close, impact detection are sent with a time stamp and GPS location

Automatic Driver ID Available with RFID card or iButton (Dallas key), and can be configured so that only authorized drivers can unlock or start the vehicle

BTSTX I/O Digital Inputs – Four contact events: two ground sense and two 5VDC – 32VDC positive sense. Analog Inputs – one 0-5VDC. Digital Outputs – two open collector 500mA. Internal analog temperature sensor. Expansion: Add three digital inputs for a total of four ground sense and two positive sense. Add one analog input for a total of two. Add RS-232 serial port for a total of two. The additional RS-232 port can support RS-485.

Battery Saving Mode auto switch to deep sleep mode when engine is turned off and auto wake up when engine is turned on or on vibration (this feature does not require backup battery)

Store and Forward Stores up to 5000 events when out of cellular coverage then send them automatically when back in cellular coverage

Starter Kill command can be sent to prevent starting vehicle (once vehicle is stopped and the ignition is turned off)

Monthly Subscription from $19.95

Technical Specs

GPS Tracking and Driver Behavior Speed, harsh driving, impact detection

Complete Vehicle Data Odometer, fuel level, battery voltage, coolant temperature, RPM, VIN (vehicle dependent)

Reports Location Every Minute when moving, every 6 hours when stopped (customizable)

BLE Bluetooth 4.2 interface supports sensors for Driver ID, tire pressure, temperature

Electric Vehicles Supported

Buffers up to 5000 messages

Built-in triple axis accelerometer

Cell Network 4G CATM1/NB1 with 2G Fallback

Dimensions 3.36” x 2” x 1” LWD (85mm x 52mm x 25.4mm)

Weight 3.17 oz.(94gr)

Internal GPS, GNSS and Cellular antennas, optional external cell antenna

Operating Voltage 6/32 v

Internal backup battery 1000 mAH Li-Ion

Environment Operating temperature: -40° to 176° F (-40° to 80° C)

Power 6DC-32VDC tethered to vehicle battery or portable with aux plug connector. Standby & sleep mode.

Vibration Sensor sensitivity adjustable for automatic security theft alarm

Driver Identification via iButton (Dallas key or Passive RFID)

Up to 6 wired temperature sensors can be added
