Description

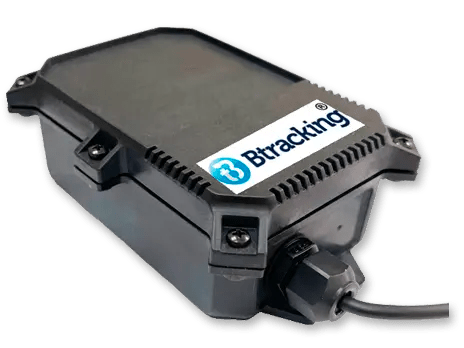

Rugged & weatherproof, hybrid trackers are ideal for powered trailers and equipment that may sit idle for extended periods. When powered, it reports frequently while it recharges its battery. Off power, it reports daily for six months or more on one charge. Accelerometer for motion detection and i/o for PTO, door/light sensing.
- Large 7800 mAh rechargeable battery
- Wires into a trailer/container
- Reports frequently when powered; when off power battery lasts up to 5 years on a single charge
- Supports unlimited BLE temperature/humidity sensors and up to 6 wired temperature/humidity sensors
- Disconnect/connect/vibration alerts
- Store & Forward up to 5,000 events when out of cellular coverage
- Supports Tool Tracking
- Mounts with heavy duty magnets, screws or 2-way tape
Cell Network 4G CATM1/NB1 with 2G Fallback. Supported bands Cat.M1 & NB1, LTE-FDD:B1/B2/B3/B4/B5/ B8/B12/ B13/B18/B19/B20/B26/B28 LTE-TDD: B39 (for Cat.M1 only) GSM850/GSM900/
Frequency Bands Quad-Band ( European 900/1800/ 2100,American 850/1900/2100
GPS GPS/GLONASS/BeiDou/Compass,Galileo, QZSS up to 1m (3ft) accuracy. GPS Technology – MTK GPS Technologies – 66 channels
RF 2.4GHz proprietary protocol, BLE (supports iBeacons, TLM and custom protocols). Range Up to 220 ft / 70m. Actual range may vary depending on RF interference, building materials, and physical obstacles Data Transmit Automatically connects to any associated Piccolo tracker and transmits every 20 seconds
Enclosure ABSPC water proof IP67 enclosure, rated UL94V-0. Shock/Vibration/Mechanical: meets or exceeds EIA standard RS-316B 3G (operating), 20G (non \operating) XYZ 3 directions. Meets SAE J1455
Dimensions 4.9” x 3.3” x 1.6” (125mm x 87mm x 41mm)
Weight 3.7oz (105g) without the batteries
Operating Conditions -22º to 176º F (-30º to 80º C). Humidity: 0 to 99% 110F (40C), non-condensing
Power Rechargeable 4.2 VDC Lithium 7800 mAh battery, when fully charged has the capacity of transmitting around 5000 GPS position. The unit has an internal fast charger. Full charge time is around 4-5 hours. Externally powered: runs in continuous mode acting as a real-time tracker for as long as external power is available. The internal battery will recharge for as long as external power is available.
The batteries can also be charged via an external of the shelf standard 6-24VDC regulated power supply wall powered (110-220 AC) that plugs into the unit via a waterproof connector.
Buffers up to 5000 messages
Built-in triple axis accelerometer.
Operating Voltage 12/24 v
BLE Bluetooth Low Energy interface peripheral support
