Cold Chain - Monitor Temperature, Humidity, Location
Real Time Cargo Temperature and Humidity Monitoring
Solutions
Trailers, Containers, Machines & Cargo
Cold Chain Monitoring
Monitor Temperature & Humidity Inside Trailers & Containers with Location Tracking
10% Spoilage Loss Reduction. Spoilage is a constant concern for any business involved in cold chain logistics. That is why it is important to have a reliable cargo temperature and humidity monitoring system. Our system can go far beyond basic temperature and humidity monitoring if needed. Learn more about our cold chain solutions below or contact us for more info. Tracking Subscription from $12.95/month, sensors from $2.00/month.
Learn More
With Btracking you can efficiently manage the entire chain of storage, shipping, and distribution of climate sensitive products such as fresh food and pharmaceuticals.
Our IoT cold chain refrigeration monitoring system employs wireless sensors to measure, record and report temperature, humidity and location ensuring consistency throughout the supply chain. Real-time alerts instantly warn drivers and Fleet Managers if conditions deviate beyond acceptable limits.
Features & Benefits
- Real Time Temperature and Humidity Monitoring
- GPS Location Monitoring
- Historical Records of Measurements & Location
- Share Measurements and Cargo ETA's with Customers
- Wireless Sensors for Fast Installation
- Monitor a Package, a Container, or an Entire Facility
- Drivers Alerted of Deviations Instantly via Driver App
Track and Protect Valuable Assets by Maintaining Optimal Container Conditions

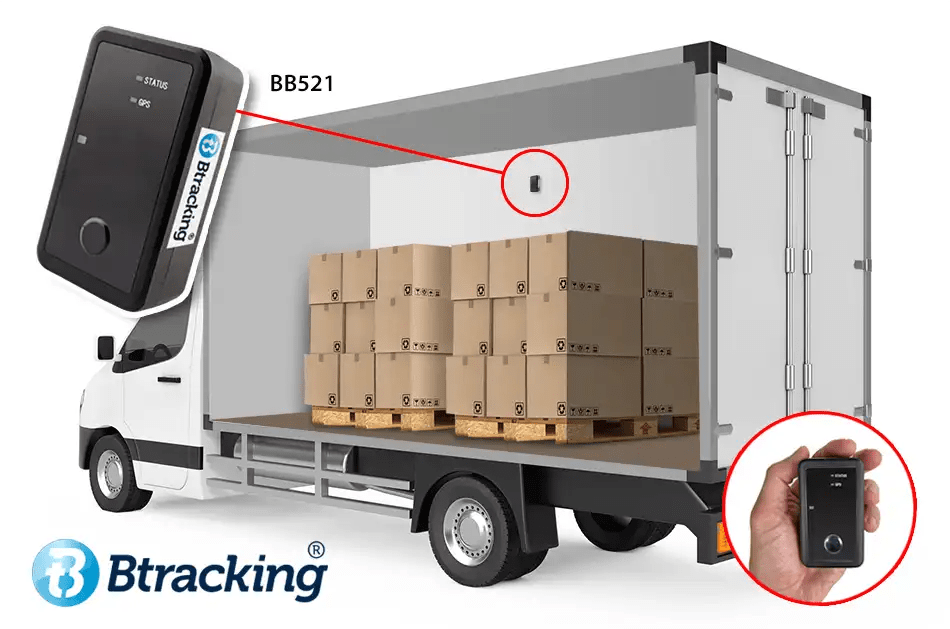

Method 1 - Rechargeable Battery GPS Tracker with Internal Temperature Monitor
- BB521 is our economical rechargeable battery GPS Tracker with internal temperature monitor. Affix the bracket to the inside wall of the trailer or container and snap-in the tracker. Easy to recharge with a wireless charger, approx every 1-2 months (depending on the report frequency you choose).
- BB521 can also be used to track packages!
- Reports Nearby Items BB521 can report location of nearby packages/tools tagged with BLE beacons.
Mini Rechargeable Battery Temperature & Humidity Monitor with GPS

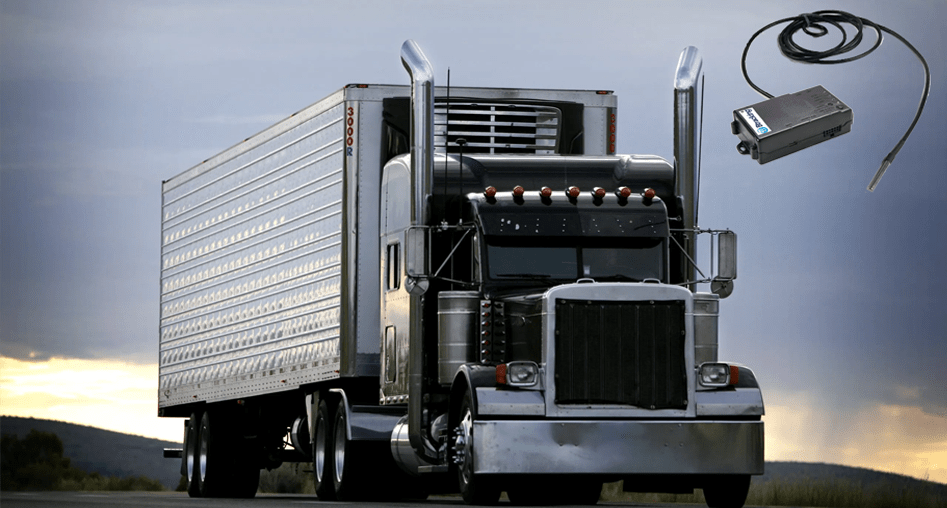

Method 2 - Heavy Duty Rechargeable Monitor with GPS - Supports Multiple Wired Temperature/Humidity Sensors
- Advanced Heavy Duty BBTMX Portable Sensor with GPS Tracking provides up to 5,000 GPS & temperature readings on a single charge.
- Store & Forward multiple readings to conserve battery. Typically, 2 readings 15 minutes apart are sent every 30 minutes, although this is fully customizable. With this configuration the battery requires charging approx once/month. Rechargeable with a standard 12VDC wall charger.
- Supports up to 6 Wired Sensors (2 temperature & humidity and 4 temperature only).
- Flexible Mounting Device mounts inside or outside the reefer with optional magnets.
Heavy Duty Rechargeable Battery Temperature & Humidity Sensors with GPS
Method 3 - GPS Vehicle or Wired Asset Tracker with Wired Sensors
- Our Vehicle and Hybrid GPS Trackers Support Up to 6 Sensors (2 temperature & humidity, 4 temperature only).
- For Box Trucks the BTSTX GPS Tracker connects to the truck's OBDII or J1939 port.
- For Trailers the BHYP and BHY283 hybrid powered GPS tracker is wired to trailer power. When connected to cab power, the tracker reports frequently and its battery is recharged. When dropped off the tracker reports up to 6 months' on one full charge.
- GPS Tracker collects and forwards climate readings to the platform, along with real time GPS locations to the Pro Fleet Platform.
GPS Vehicle or Wired Hybrid Asset Tracker with Wired Sensors

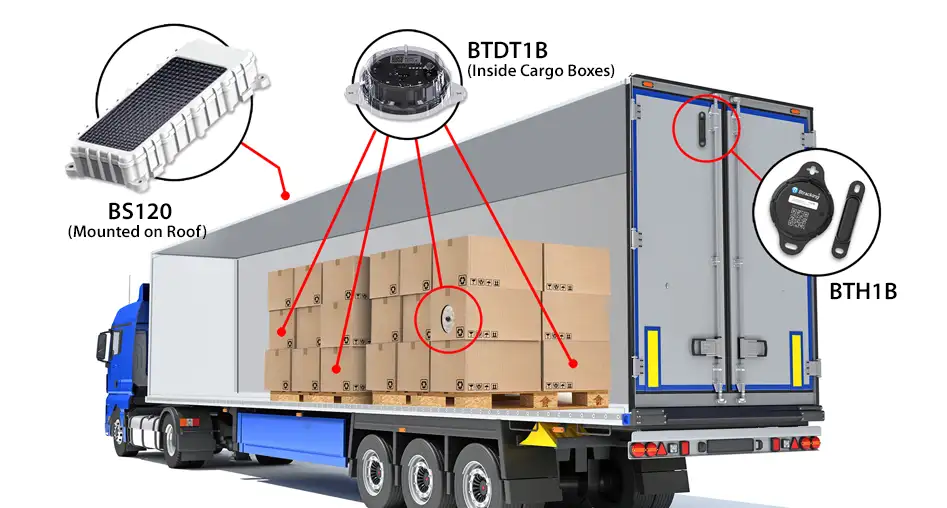

Method 4 - Vehicle or Asset Tracker with Mini Wireless Sensors
Method 4a - Solar Asset Tracker BS120 with Mini Wireless Sensors
Method 4b - SolarLock Asset Tracker BSX100 with Mini Wireless Sensors
Method 4c - Wired Long-Life Rechargeable Asset Tracker BHY212B with Mini Wireless Sensors
- A BLE-Enabled GPS Tracker is the base station, collecting and forwarding climate readings and locations to the platform. The Base Station GPS Tracker can be a BP55 Plug-in Vehicle Tracker, a BHY212B Hybrid Powered Tracker (as shown above),or a BS120 or BSX100 Solar Powered Tracker (as shown below).
- Mount Wireless Mini BLE Temperature/Humidity Sensors inside the cargo container or even inside the packages. Sensors have a replaceable battery lasting 6-8 years! Add a BLE Door Sensor to get alerts when door opens.
- Btracking mini sensors are suitable for monitoring small cold chain products such as organ distribution or medical products.
GPS Vehicle Tracker, Hybrid Asset Tracker, or Solar Asset Tracker with Wireless Mini Battery Powered Sensors
- BP50 Plugin Tracker - Learn More & Purchase
- BHY212B Hybrid Tracker - Learn More & Purchase
- BS120 Solar Tracker - Learn More & Purchase
- BSX100 SolarLock Tracker & Door Lock with Remote Unlocking - Learn More & Purchase
- BTH1B Mini Temperature & Humidity Sensor - Learn More & Purchase
- BTDT1B Door & Temperature Sensor - Learn More & Purchase
Method 5 - Heavy Duty GPS Vehicle Tracker or Hybrid Asset Tracker with Wireless Sensors
- The BTPLUS Vehicle Tracker or BHYP Hybrid Trailer Tracker serves as a base station, collecting and forwarding climate readings to the platform, along with real time GPS locations.
- Wireless Solar Rechargeable Sensors (temperature & humidity or temperature only) mount on the exterior of the trailer/container for continuous maintenance-free operation. Sensor comes with an external probe; drill a 1/2" opening in the trailer panel and secure probe inside.
- Add a BLE Door Sensor to get alerts when door opens.
- GPS Tracker collects and forwards climate readings to the platform, along with real time GPS locations to the Pro Fleet Platform.
Heavy Duty GPS Vehicle Tracker or Hybrid Asset Tracker with Wireless Sensors
- BTPLUS Telematics Gateway Truck Tracker - Learn More & Purchase
- BHYP Hybrid Powered Trailer Tracker - Learn More & Purchase
- BTWPT Long Range Temperature & Humidity Sensor - Learn More & Purchase
- BTSPT Wireless Solar Powered Temperature & Humidity Sensor with External Probe - Learn More & Purchase
- DriverLink App - Learn More

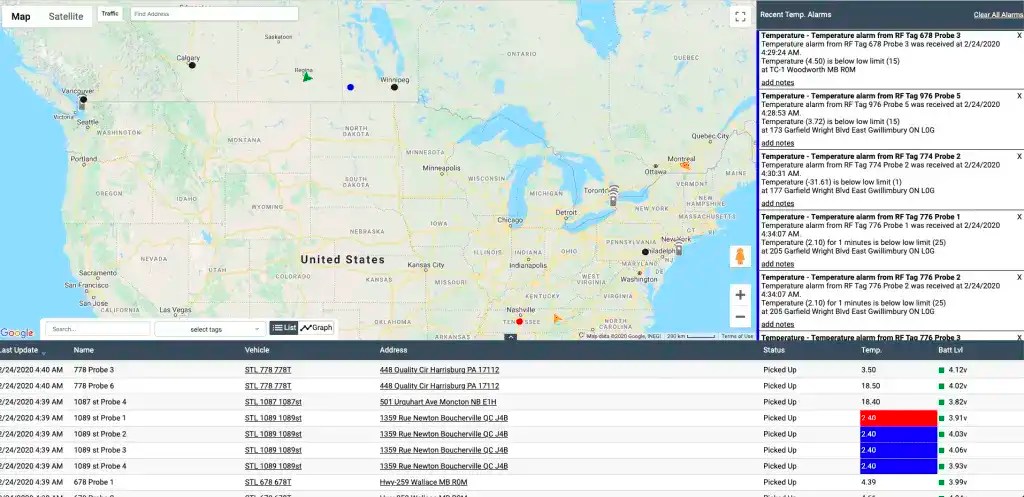

What Do I See?
- IoT Cold Chain Monitoring System Ensures a temperature & humidity-controlled environment
- Real-Time Alerts to both drivers and Fleet Managers of climate deviations

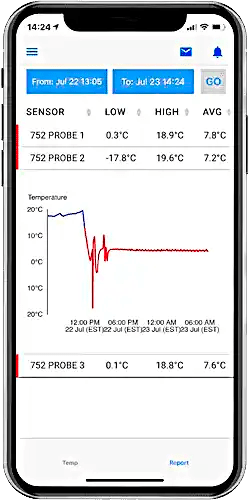

- Temperature/Humidity Reports with locations and time stamps
- Send A Link to Customers to view approaching shipments with ETA

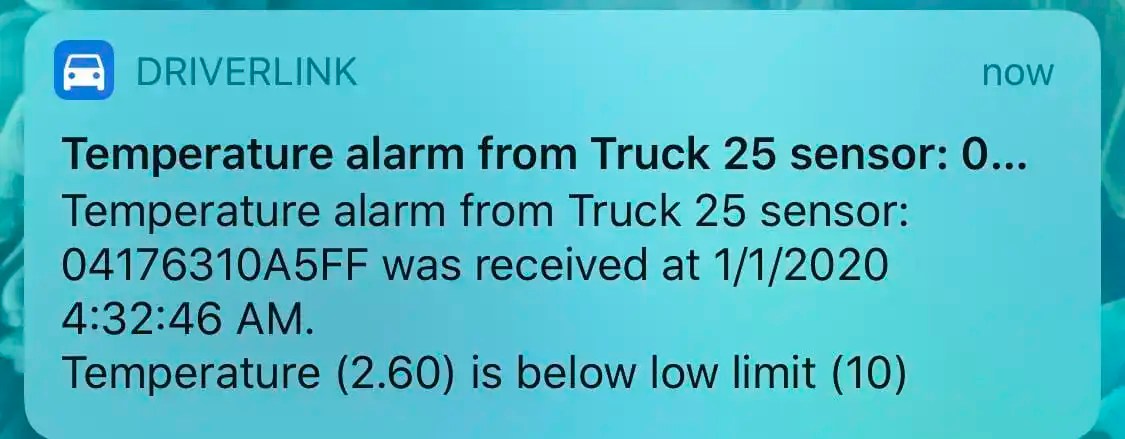

Real Time Driver & Fleet Manager Alerts
- Automatic Alerts Instant alerts warn drivers of deviations via the DriverLink app on their mobile device
- Fleet Manager Alerts Alerts automatically sent to Fleet Mangers via the platform, phone app, email, and/or test message
- Driver Comments our cold chain temperature monitoring platform allows drivers to add details as to how alerts were generated and handled
Complete Cold Chain Visibility and Reliability
- Visibility Via the Btracking cold chain monitoring system and DriverLink mobile app, you extend full visibility to customers eliminating back and forth between carrier and customer
- Reporting, Shared ETA and Proof of Delivery Temperature/humidity/location reports, sharing live ETA and proof of delivery helps to eliminate rejected shipments, reduce inquiries and streamline deliveries
- Contact Us Do not hesitate to reach out if you have any questions about our cold chain temperature monitoring devices or platform. We also offer product training and customer support.
Cold Chain Monitoring & Tracking FAQ’s
What is cold chain monitoring?
Cold chain monitoring involves tracking temperature and humidity conditions of sensitive cargo during transportation or storage. Btracking provides GPS tracking devices with temperature and humidity monitoring, ensuring your cold chain remains unbroken from origin to delivery.
How do our cold chain monitoring solutions work?
Btracking’s cold chain monitoring solutions use GPS-enabled devices with internal or BLE-connected sensors to track temperature, humidity, and location. Real-time alerts notify drivers and managers of any deviations.
Can I track temperature and location at the same time with a trailer temperature monitoring system?
Our GPS temperature monitoring devices combine location tracking with climate sensors. This gives you complete visibility into where your cargo is and how it’s being handled.
Do your monitoring systems send real-time alerts?
Yes. When temperature or humidity levels go out of range, real-time alerts are sent to drivers via the DriverLink app and to fleet managers via SMS, email, or the Btracking platform.
How often do GPS temperature monitoring devices need to be charged?
Btracking offers multiple options:
- Rechargeable devices typically last 1–2 months per charge
- Solar-powered trackers require no charging. About 4 hours/day of sunlight keeps a solar tracking at full charge
- BLE sensors have 6–8 year battery life or are rechargeable
Can I share temperature logs or ETA with customers?
Yes, Btracking’s cold chain monitoring platform allows you to share real-time location, temperature reports, and delivery ETA with customers through live links reducing inquiries and delivery disputes.
