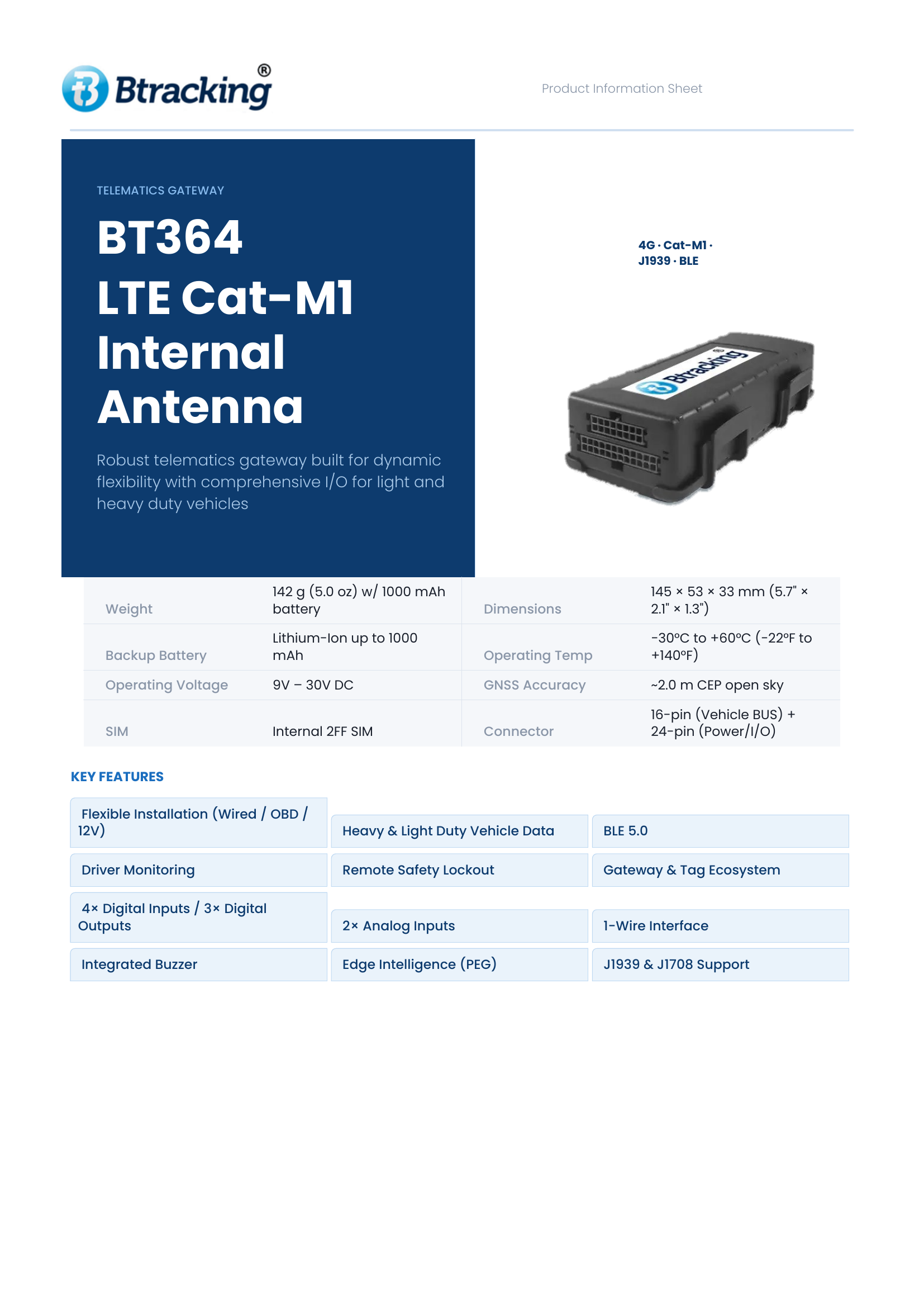

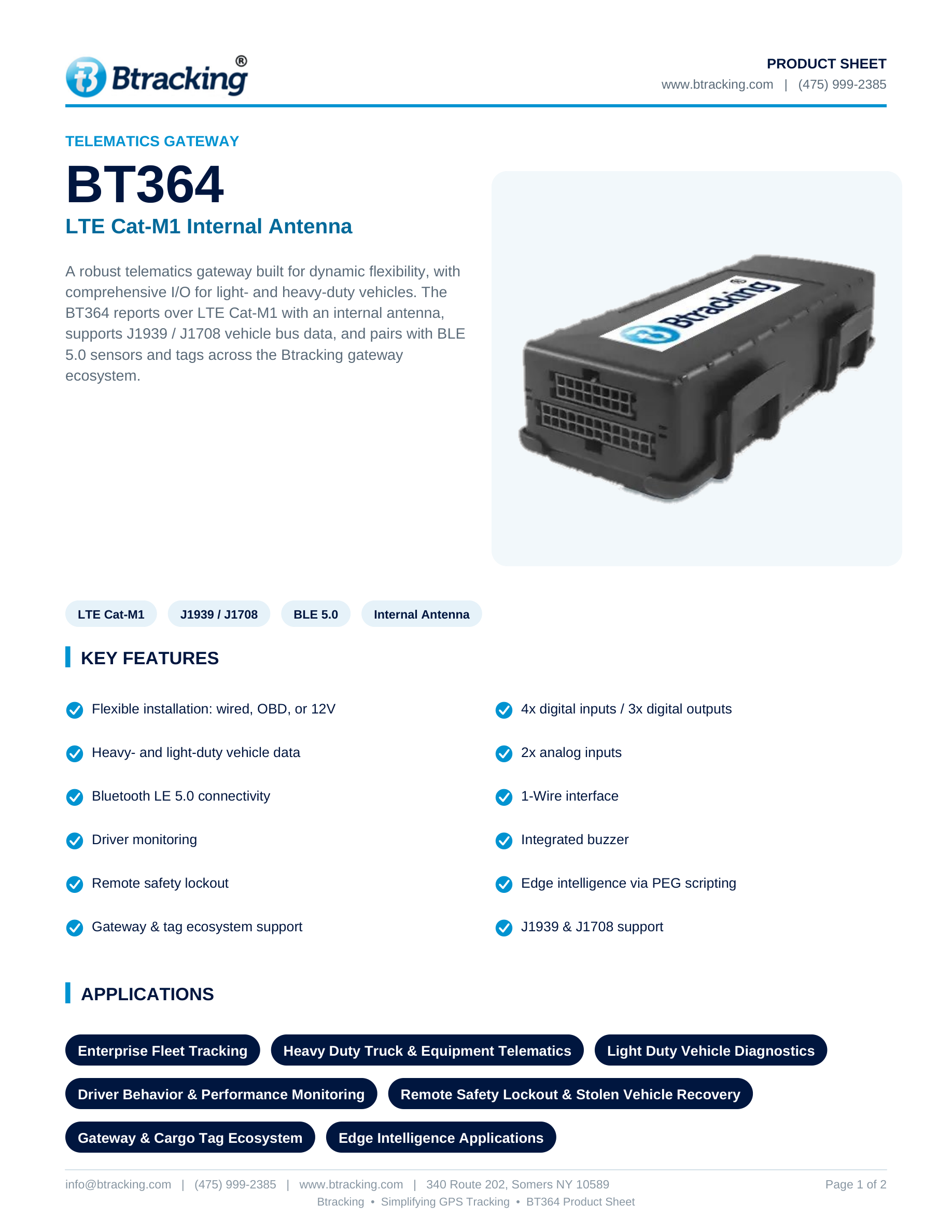

BT364

Deluxe Telematics Gateway Tracker

Contact to Order
Truck telematics gateway trackers

Features & Benefits

  • Fully Programmable
  • Input/Output Capacity ignition input / 4 digital inputs / 2 analog inputs / 3 digit outputs / 1-wire interface
  • Driver Behavior with programmable audible warnings
  • Comprehensive Vehicle Data
  • Engine Control Unit (ECU) Interface J1939/OBDII
  • BLE
  • Optional WiFi Hot Spot
  • Optional weatherproof case, long life battery
  • Optional Panic Button, CrashBoxx™ with 99% accurate crash alerts
  • Advanced Peripherals Support

Highlights

Telematics Gateways provide GPS tracking along with a host of additional features such as wifi and BLE for integrated dashcams, sensors for monitoring the vehicle, sensors for monitoring the climate in the cargo hold, driver communication with dispatch, HOS electronic logging, and more.

Fully Programmable

Input/Output Capacity ignition input / 4 digital inputs / 2 analog inputs / 3 digit outputs / 1-wire interface supports Automatic Driver ID (Fob, HID/RFID card, Dallas Key), starter interrupt, temperature sensing, doors, lights, fuel sensors, 3rd party add-on sensors, more

Driver Behavior Monitors speed, harsh driving, impact detection, programmable audible warnings

The Most Comprehensive Vehicle Data Fuel level, speed, battery voltage, odometer, coolant temperature, RPM, VIN, seatbelt use, engine data, fault indicator/DTC codes, diesel particulates, tire pressures, VIN, turn signals, engine oil temperature, average fuel economy, transmission fluid temperature, throttle position, ambient air temperature, DEF levels. *Note, data is vehicle dependent and may not be available on certain vehicles

Engine Control Unit (ECU) Interface Supports both J1939 heavy duty and OBDII light duty vehicles

BLE Bluetooth connectivity supports add-ons such as automatic Driver ID

Optional WiFi Hot Spot

Optional Weatherproof IP67 case, 5.2 Ah battery (500 message cycles/charge lasts up to 6 months on a single charge)

Optional Panic Button, CrashBoxx™ with 99% accurate crash alerts, severity rating, accident reconstruction, predictive physical damage

Advanced Peripherals Support Android™, Magellan®, Garmin®, TomTom®, MDT and others

Monthly Subscription from $12.95 and No Contracts

Technical Specs

GPS Tracking and Driver Behavior Speed, harsh driving, impact detection

Complete OBD Vehicle Data Odometer, fuel level, battery voltage, coolant temperature, RPM, VIN (vehicle dependent)

Reports Location Every Minute when moving, every 6 hours when stopped (customizable)

BLE Bluetooth 4.2 interface supports sensors for Driver ID, tire pressure, temperature

Electric Vehicles Supported

Buffers up to 20000 messages

Built-in triple axis accelerometer (all models), gyroscope (global models)

Cell Network LTE Cat M1/2G

Dimensions 5.7 in x 2.1 in x 1.3 in

Weight 5 oz

Internal GPS, GNSS and Cellular antennas

Operating Voltage 12/24 v

Internal backup battery 1000 mAh Li-Ion (optional 5200 mAh

Programmable Buzzer

Input/Output Capacity ignition input / 4 digital inputs / 2 analog inputs / 3 digit outputs / 1-wire interface
