GPS Tracking for Tow Trucks: Dispatch, Arrival Records and Hardware

Dispatch: Seeing Every Truck on One Map

Every Btracking vehicle tracker and truck telematics gateway reports position at least every minute while moving and every six hours when stopped, with the interval customizable to the operator's requirements. The result is a single live map that replaces the per-driver phone call as the primary tool for knowing where the fleet is at any given moment.

Position data, however, is not availability data. A rollback with a casualty vehicle already on deck and a unit sitting idle between calls occupy the same icon on the map. Whether a truck is free to accept a new dispatch remains a process decision made by the dispatcher: it is not a platform output. Operators who treat the map as a substitute for that judgment will over-assign or under-assign loads regardless of how accurate the GPS feed is.

For planned transport work (scheduled moves, multi-stop routes set up the evening before) the Enterprise platform includes Route Matrix fleet routing, which builds multi-stop routes on real drive times and the operator's own constraints so the day begins with a structured plan. Route Matrix is not included in the Standard platform, and it is designed for planned schedules rather than unscheduled overnight recovery calls, where routes cannot be known in advance.

Btracking sells three fleet-management platforms (Standard, ProFleet, and Enterprise) each covering dispatch and routing alongside geofence notices, driver scorecards, and maintenance tracking. Whether any of these platforms integrates directly with a dispatch system already in use at a given operation is a compatibility question that should be confirmed at the quote stage; no integration is claimed here, and none is ruled out.

Arrival Records: Timestamps a Dispatcher Can Produce

Route history, stop times, and geofence notices together give a dispatcher a timestamped record of when any truck arrived at or departed from a defined location.

The Btracking platform records each truck's current position, its full route history, and the time spent at every stop throughout the day. When a truck enters or exits a location (a yard, an impound lot, a body shop, a motor-club drop point) the platform generates an entry or exit notice that carries the timestamp of that event. A dispatcher can retrieve those records for a given truck and day when a question arises.

Setting up a geofence. An operator draws a boundary around a location inside the platform. From that point forward, every crossing of that boundary, inbound or outbound, produces a notice with the time of the event. The three fleet-management platforms (Standard, ProFleet, and Enterprise) all include geofence entry and exit notices as a standard feature, so the capability is available regardless of which tier an operator runs.

Reporting resolution. Trackers report position at least every minute while a vehicle is moving, and the interval is customizable. At that interval, a moving truck's recorded positions around a geofence crossing are about a minute apart.

Evidentiary weight. The record the platform produces is a factual log of device events. Whether a motor club, an insurance adjuster, or a customer accepts that log as authoritative proof of arrival time is a determination those parties make under their own policies. The platform's role is to generate and preserve the record; the dispatcher's role is to produce it when it is requested.

After-Hours and Shared Trucks: Engine Events and Driver ID

Every engine on/off event (along with vibration alarms, door open/close, and other digital input triggers) is transmitted with a timestamp and GPS location, giving dispatchers and owners a precise, time-ordered record of when each truck moved and where.

Driver ID ties that record to a specific person rather than leaving a trip attributed to "the truck."

• The BT364 Deluxe Truck Tracker supports automatic Driver ID by BLE key fob ($24.99), HID/RFID card, or Dallas key.
• The BTSTX ProFleet Truck Tracker and the BTPLUS ProFleet Truck Tracker support automatic Driver ID by RFID card or iButton (Dallas key), and both can be configured so that only an authorized driver can unlock or start the vehicle.

On any of these gateways, a starter-kill command can be sent to prevent the vehicle from starting, but only once the vehicle is already stopped and the ignition is off.

The system records what happened and when; it does not interpret intent. Whether a driver taking a shared on-call truck to a gas station at 9 p.m. constitutes personal use is a policy question the owner must answer in writing. The tracker supplies the timestamped location record that makes any written policy enforceable: it does not make the determination itself. The record is the company's account of its own trucks.

Recommended Hardware by Truck Type

Plug-in trackers connect to the OBD-II port in seconds and are adequate for light-duty service vehicles that share the cab with minimal ancillary wiring; hardwired gateways are the correct fit for any truck that tows, because a permanent wired install suits a cab that drivers climb in and out of all shift and leaves the diagnostic port free, and a wired install is also where digital inputs for the PTO, lights or doors can be connected. For a full technical comparison of installation methods, see OBD vs Hardwired vs Battery GPS Tracker.

BT364 Deluxe Truck Tracker | Telematics Gateway

The BT364 is the primary recommendation for any towing operator running medium or heavy trucks. It supports J1939 (heavy-duty nine-pin) and OBD-II harness options, reads the full engine data bus (fuel level, odometer, RPM, coolant temperature, fault indicator/DTC codes, DEF levels, tire pressures, transmission fluid temperature, and more) and provides fully programmable I/O: one ignition input, four digital inputs, two analog inputs, three digital outputs, and a 1-wire interface. Driver behavior monitoring (speed, harsh driving, impact detection) and programmable audible warnings are built in. Automatic Driver ID accepts a BLE fob, HID/RFID card, or Dallas key. The BT364 is priced from $239.99; the harness is chosen at order, with J1939 adding $20 (connector type specified with Btracking) and OBD-II or auxiliary power adding $10. The platform subscription is $12.95/month on Standard or $14.95/month on Enterprise, continuing month to month after the first month and cancellable with 10 business days' notice.

Buy, J1939 heavy-truck diagnostics, programmable I/O and driver behavior in one hardwired gateway, on the Standard or Enterprise platform.

BTSTX ProFleet Truck Tracker | Telematics Gateway

The BTSTX is a hardwired telematics gateway with driver behavior monitoring (sudden acceleration, lane crossing, sharp turns, sudden braking), automatic Driver ID via RFID card or iButton, and four digital inputs plus two digital outputs. It runs exclusively on the ProFleet platform at $19.95/month and is priced from $219.99. It provides vehicle diagnostics and run-time and performance diagnostics, with wired, J1939, OBD-II and auxiliary-power harness options.

Consider, appropriate when ProFleet platform features are required and the full J1939 engine-data set of the BT364 is not a priority.

BTPLUS ProFleet Truck Tracker | Telematics Gateway

The BTPLUS shares the BTSTX's driver behavior and automatic Driver ID capability and runs exclusively on the ProFleet platform. At $239.99 base and $29.95/month (or $49.95/month with WiFi hotspot), it carries the highest monthly rate of the three gateways. Its I/O is slightly narrower than the BTSTX, three digital inputs versus four before expansion.

Consider, justified only when the WiFi hotspot or BTPLUS-specific ProFleet features are required; otherwise the BTSTX or BT364 delivers more I/O per dollar.

BHW123 Hardwired Vehicle Tracker | Multiple I/O's

The BHW123 is a compact, easily concealed hardwired tracker at $95.99 with two digital inputs and three digital outputs, suitable for monitoring door open/closed, lights on/off, and PTO on/off. Its triple-axis accelerometer handles motion and tilt sensing only, the BHW123 explicitly provides no driver behavior monitoring and no vehicle diagnostics. It runs on the Standard or Enterprise platform at $12.95 or $14.95/month.

Consider, appropriate for covert secondary tracking or ancillary equipment where I/O monitoring is needed and diagnostics are not; not a substitute for a telematics gateway on a primary tow truck.

BP50 Series Plugin Vehicle Tracker | Basic CANBus Data

The BP50 Series is a $69.99 plug-in tracker with GPS tracking, driver behavior (speed, harsh driving, impact detection), optional CANBus vehicle data (odometer, fuel level, battery voltage, coolant temperature, RPM where the vehicle provides it), and BLE support for optional sensors. It is the economical entry point for light-duty service vehicles and runs on the Standard or Enterprise platform at $12.95 or $14.95/month.

Consider, suitable for light pickups and service vans in a towing fleet; not appropriate for any truck where the OBD-II port cannot be permanently occupied or where J1939 data is required.

BP304 Deluxe Plugin Vehicle Tracker | Programmable, Customizable

The BP304 is a $159.99 plug-in tracker with the full OBD data set (DTC fault codes, DEF levels, tire pressures, seatbelt use, transmission fluid temperature, and more) plus crash detection, programmable audible warnings, and support for the BLE Driver ID key fob. It is fully programmable for custom application development. Platform subscription is $12.95/month on Standard or $14.95/month on Enterprise.

Consider, the right plug-in choice when deep OBD diagnostics and programmability are needed on a light-duty vehicle; still occupies the OBD-II port and is not suited to heavy trucks requiring J1939.

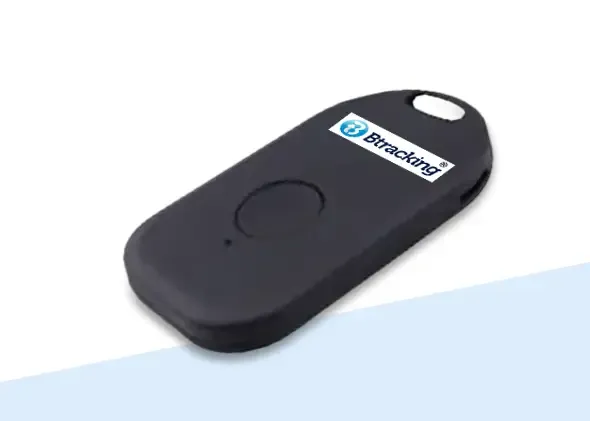

Driver ID Key Fob | BLE

The BLE Driver ID key fob is a $24.99 accessory that assigns each trip to the individual driver. It is compatible with the BT364 gateway and with plug-in trackers that support Driver ID. For towing operators running multiple drivers per truck, it is a low-cost addition that closes the accountability gap between vehicle data and driver records.

Buy, at $24.99 per fob, driver-trip attribution is the lowest-cost accountability measure available; pair with any compatible gateway or plug-in tracker.

Free Device Plan

The Free Device plan provides a plug-in or hardwired tracker at no upfront hardware cost, on the Standard platform at $13.95/month plus a one-time activation fee ($20 for hardwired, $20 for plug-in without CANBus data, $25 for plug-in with CANBus data). The device remains Btracking property; ending the subscription requires returning it in working condition or paying an $85 device buyout fee. Hardware purchased outright subscribes at $12.95/month on Standard and is owned by the customer with no return obligation.

Consider, suits an operator who wants no upfront hardware cost and accepts the return terms; an operator who wants to own the device and have no return obligation should buy it outright.

Hardware at a Glance: Price, Monthly Rate and Verdict

Damage Disputes: What Camera Coverage Actually Covers

GPS data records location, speed, and driver-behavior events, it cannot document the physical condition of a towed vehicle at the moment of pickup or drop-off. A road-facing camera addresses what happens in front of the truck, but the load deck sits behind the cab and outside that field of view entirely. The BD2040 Dashcam with 256GB SD Storage, priced at $319.00, is configured as road camera only or road and interior cameras. Neither configuration points a lens at the deck, which means a pre-existing scratch or a strap mark acquired in transit will not appear in that footage.

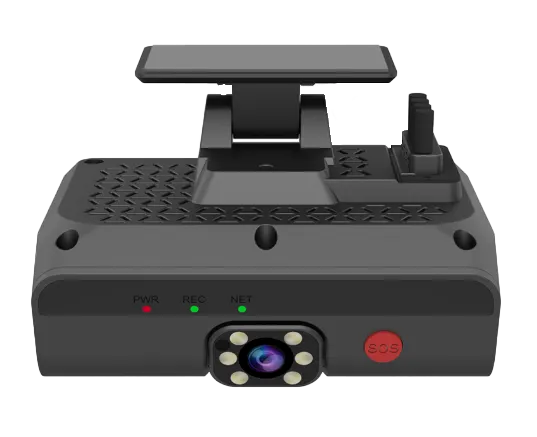

The BD2040 ProFleet 4 Channel AI Dashcam System, starting from $319.00, is built to order on the ProFleet platform and adds two channels beyond the standard road and driver pair. Those additional channels can be specified as side, rear, or a hidden interior mini cam. A rear or side camera aimed at the deck is the configuration to specify for a view of the deck; the exact placement should be confirmed at the quote stage to match the truck's body geometry. For a full comparison of AI dashcam options across fleet roles, see the Btracking guide to the best AI dashcams for fleets.

Cost Model: Hardware, Subscriptions and Terms

Every Btracking subscription runs month-to-month after the first month, with no long-term contracts, a lifetime warranty on hardware while subscribed, and U.S.-based support engineers.

Hardware purchase prices. The BT364 Deluxe Truck Tracker is priced from $239.99; the harness is chosen at order, with J1939 adding $20 (connector type specified with Btracking) and OBD-II or auxiliary power adding $10. The BTSTX ProFleet Truck Tracker runs $219.99–$239.99, with J1939 or OBDII harnesses adding $40, or wired/auxiliary power adding $15. The BTPLUS ProFleet Truck Tracker is $239.99–$269.99 with the same harness schedule as the BTSTX. Plug-in trackers carry a lower entry cost: the BP50 Series is $69.99 and the BP304 Deluxe is $159.99. Hardware purchased outright is owned by the fleet operator and does not have to be returned.

Monthly platform rates. The BT364 runs on the Standard platform at $12.95/month or the Enterprise platform at $14.95/month. The BTSTX is exclusive to the ProFleet platform at $19.95/month. The BTPLUS is also ProFleet-only, at $29.95/month standard or $49.95/month with a WiFi hotspot. Purchased plug-in and hardwired trackers (including the BP50 Series and BP304) subscribe at $12.95/month on Standard or $14.95/month on Enterprise. The BD2040 Dashcam carries its own subscription: $34.99/month for the road camera only, or $39.99/month for the dual-camera configuration.

Cancellation notice periods. Tracker platform subscriptions can be cancelled with 10 business days' notice after the first month. The BD2040 dashcam subscription requires 14 days' notice. Added features may increase the subscription price on any tier.

The Free Device plan. Rather than purchasing hardware, a fleet operator can take a free plug-in or hardwired tracker under the Free Device plan at $13.95/month on the Standard platform, plus a one-time activation fee of $20 for a hardwired unit or a plug-in without CANBus data, or $25 for a plug-in with CANBus data. The device may be a used unit, remains Btracking property throughout the subscription, and must be returned in proper working condition at cancellation, or the subscriber pays an $85 device buyout fee. The Free Device plan suits operators who want to avoid upfront hardware cost; buying outright suits operators who want to own the device with no return obligation.

For a fuller breakdown of total cost of ownership across tracker types, see the Btracking fleet GPS cost guide.

Next decision. The immediate planning step is to count trucks by type, light-duty service trucks versus heavy tow units with J1939 networks, and to determine whether any truck requires start authorization or deck/cab video. Those two answers determine which hardware tier is appropriate and whether the BD2040 dashcam subscription belongs in the budget.
